Specifications
| Model No. | HJ-VC1 | HJ-VC2 | HJ-VC4 | HJ-VC6 | HJ-VC8 |
| Voltage | 220V | 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz |
| Power | 7.5KW | 10KW | 15KW | 15KW | 25KW |
| Melting time | 3-5 min. | 3-5 min. | 3-5 min. | 3-5 min. | 3-5 min. |
| Max Capacity | 1kg | 2kg | 4kg | 6kg | 8kg |
| Maximum Temperature | 1600C | 1600C | 1600C | 1600C | 1600C |
| Temp Control | PID | PID | PID | PID | PID |
| Temp Accuracy | ±2°C | ±2°C | ±2°C | ±2°C | ±2°C |
| Shielding Gas | Argon or nitrogen | Argon or nitrogen | Argon or nitrogen | Argon or nitrogen | Argon or nitrogen |
| Dimensions | 720*700*1150mm | 720*700*1150mm | 720*700*1150mm | 720*800*1150mm | 720*800*1150mm |
| Weight | 210kg | 220kg | 240kg | 250kg | 280kg |
| Casting Chamber Size | 101*254mm （D*H） | 101*254mm （D*H） | 101*254mm （D*H） | 101*254mm （D*H）customized | 101*254mm （D*H）customized |
Features
Intelligent vacuum pressure casting. With vacuum and pressure, melting and casting all in one.

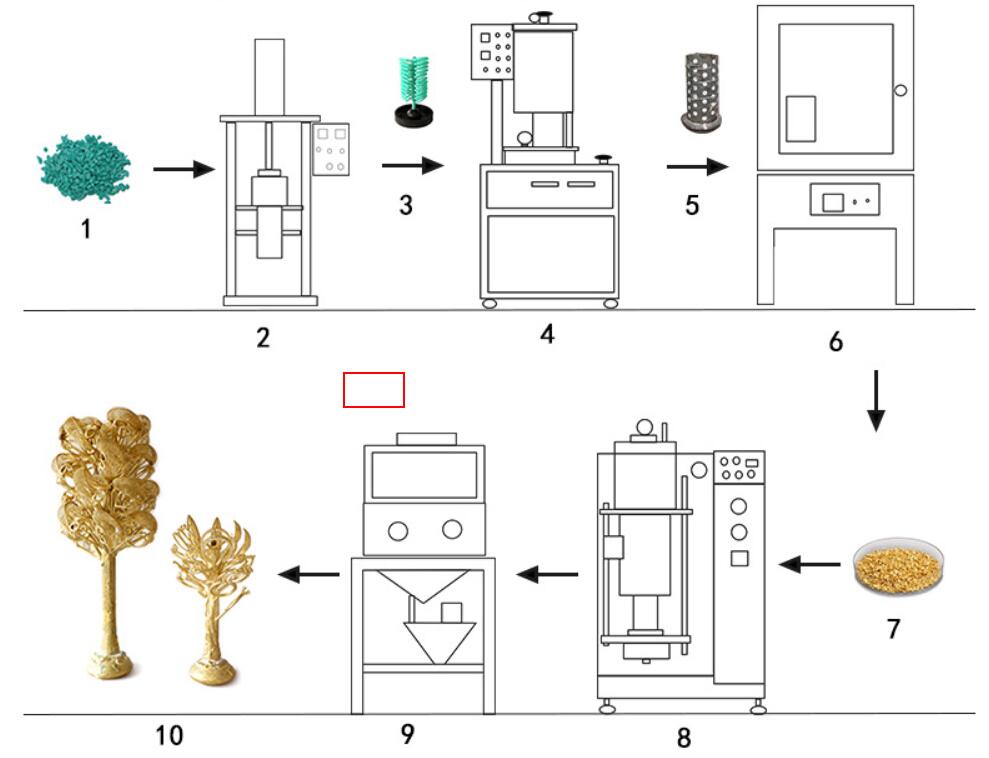

Jewelry making process
SPECIFICATIONS:
