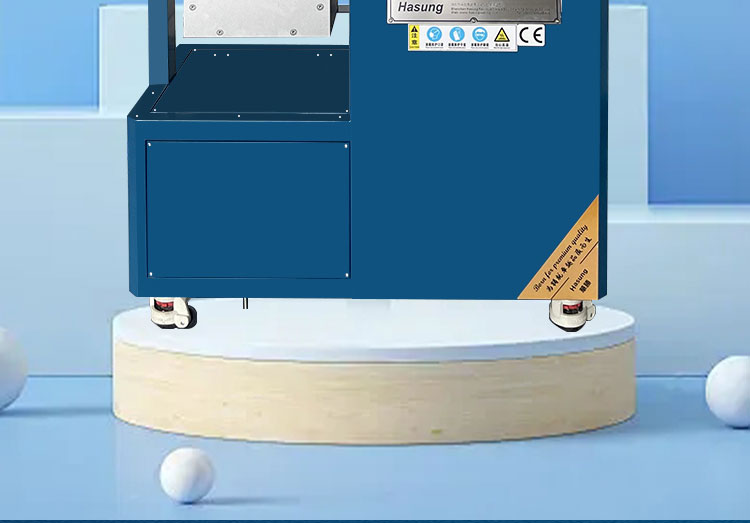

Manual Pouring Induction Melting Furnace:

Model No.: HJ-TF

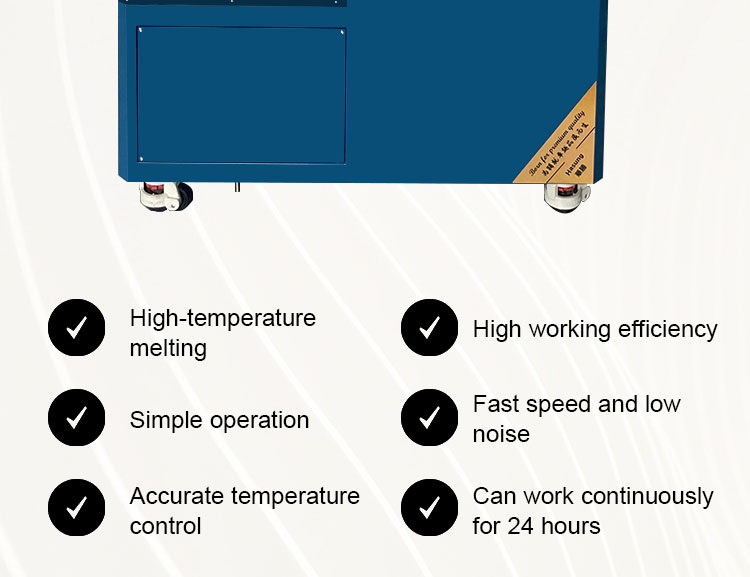

Features

A. Tilting type indcution melting furnace,
B. 4kg to 10kg capacity for gold,
C. Small size, portable, easy to operate,
D. Manual pouring easily.
E. Complete with crucible. Water cooling pump built inside.


1. Using imported IGBT.

2. Application for various metals such as gold, silver, copper, brass, alloy.


Technical data

Model No.HJ-TF4HJ-TF6HJ-TF8HJ-TF10
Voltage380V, 50/60Hz, 3 phases
Power 15KW15KW 20KW 20KW
 Capacity (gold)4kg 6kg 8kg 10kg
 ApplicationGold, silver, copper, alloy
  Max. Termperature  1500°C
 Working frequency30Khz-50Khz
 Melting time 3-5 mins. 4-6 mins.4-6 mins. 5-8 mins.
 Cooling methodWater cooling system or running water
Dimensions650mm×500mm×1000mm
Weightapprox. 65kgapprox. 68kgapprox. 70kgapprox. 70kg
